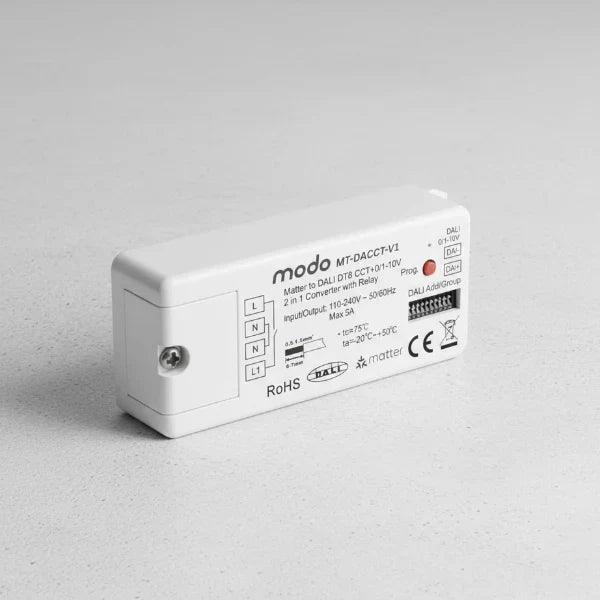

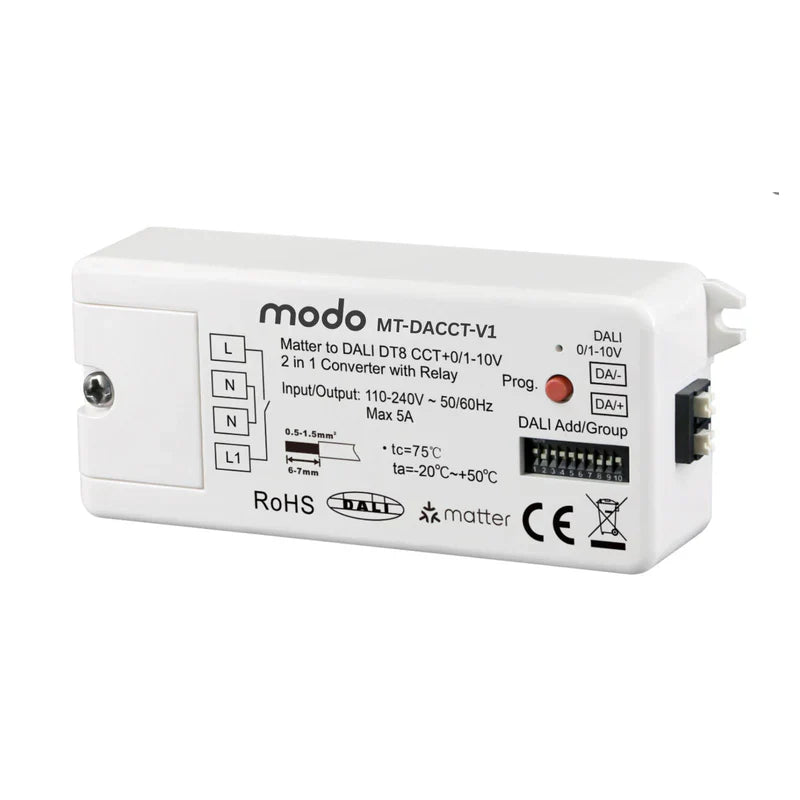

Modo Matter to DALI Convertor

MT-DACCT-V1 – Matter over Thread to DALI DT8 CCT + 0/1-10V 2-in-1 Converter

Seamlessly integrate your Matter over Thread smart home ecosystem with professional DALI DT8 CCT and 0/1-10V dimming lighting systems using the MT-DACCT-V1 converter. Ideal for smart home enthusiasts, lighting integrators, and commercial installations.

Key Features:

• Matter input via Thread, convertible to either DALI DT8 CCT or 0/1-10V output using DIP-switch selector.
• Wide mains input range: 110-240VAC for global compatibility.
• Built-in DALI bus power (up to 50mA) supporting up to 25 DALI devices without extra power supply.
• Relay output: 5A for incandescent/halogen, 1.6A for LED loads.
• Flexible control: DIP-switch configurable for DALI address (00-63), group (0-15), or broadcast mode.
• Compact design: 95 × 37 × 20 mm – perfect for DIN-rail or junction-box mounting.
• Supports dynamic white lighting (CCT control, Device Type 8 under DALI).

Why Choose MT-DACCT-V1:

The MT-DACCT-V1 allows seamless integration between smart home automation and professional lighting systems. Control DALI DT8 CCT or 0-10V drivers directly from your Matter-compatible ecosystem like Apple Home, Google Home, or Amazon Alexa. Perfect for:

• Residential living rooms, bedrooms, and kitchens
• Hotel rooms and hospitality lighting
• Office or retail spaces using DALI or 0/1-10V lighting systems

Installation Notes:

• Input: 110-240VAC. Select output mode (DALI or 0/1-10V) via DIP switch.
• Configure DALI address or group before powering on.
• Relay output can be used if 0/1-10V drivers cannot dim fully off.
• IP20 rating – indoor use only, install in a dry enclosure.
• Follow wiring diagrams and user manual for safe installation.

Package Includes:

• MT-DACCT-V1 Converter module
• Installation & user manual
• Wiring diagram

Technical Specifications:

• Input Voltage: 110-240VAC
• DALI bus power output: Max. 50mA
• Relay output: Max. 5A (incandescent/halogen) / 1.6A (LED)
• Product Dimensions: 95 × 37 × 20 mm
• Operating Temperature: -20°C to +50°C
• Relative Humidity: 8% to 80%
• Protocol Support: Matter (Thread), DALI DT8 CCT
• Enclosure Rating: IP20

Upgrade your smart home lighting with MT-DACCT-V1 – the reliable bridge between Matter Thread ecosystems and professional lighting controls. Perfect for creating dynamic, automated, and energy-efficient lighting environments.
