Aqara Valve Controller T1
Get in touch with DBGTECH's expert product consultant
- In stock
Aqara Valve Controller T1

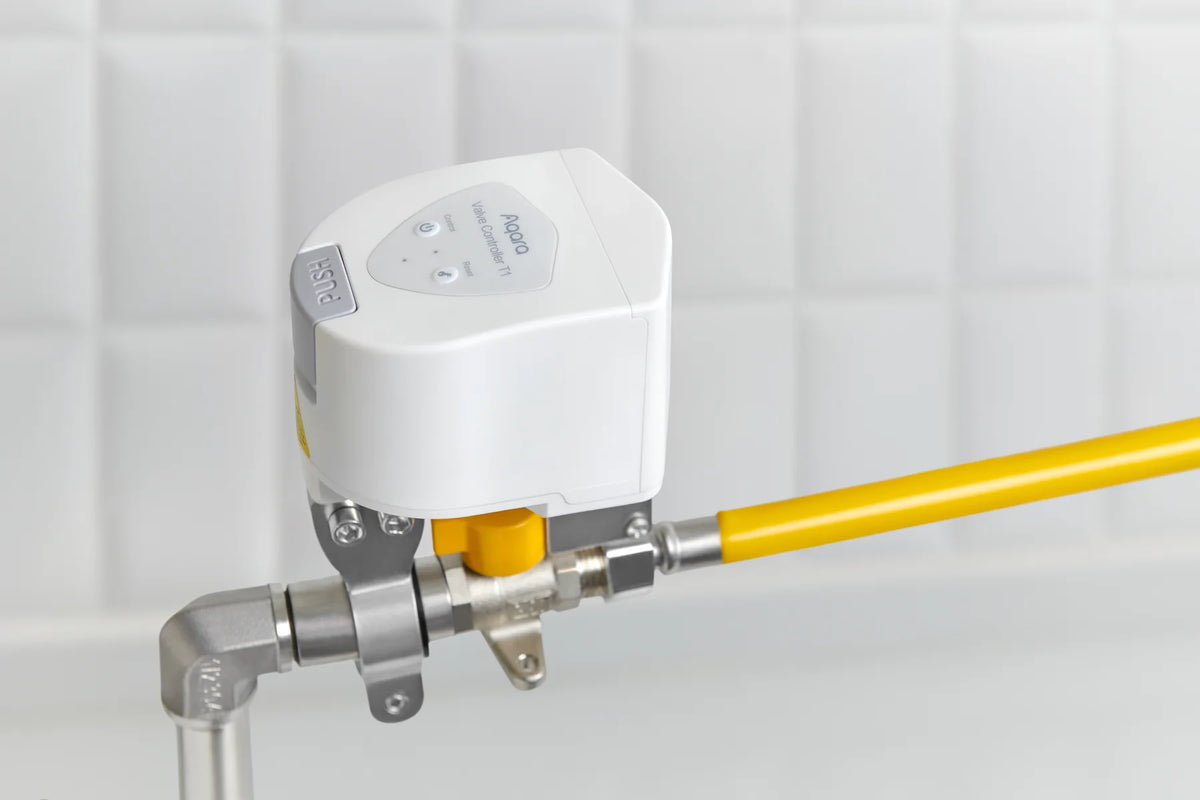

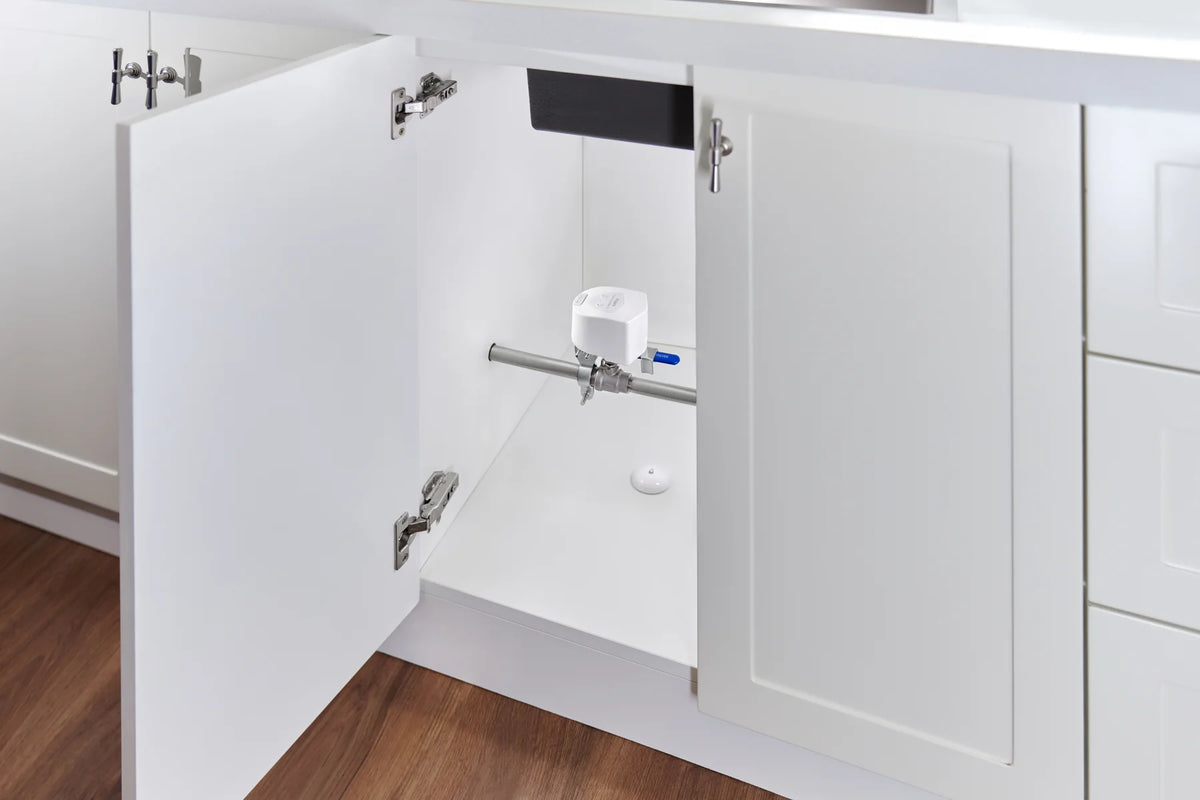

The Aqara Valve Controller T1 offers smart water pipeline control using Zigbee, enabling app, manual, and automated operations. It easily retrofits onto existing valves without plumbing modifications. Designed to work with Aqara leak detectors, it can automatically shut off water to prevent damage, providing peace of mind. Compatible with various household valves, including lever and butterfly handles.
Functions:
- Automatic Leak Detection: Integrated with water leak sensors for real-time monitoring.
- Multiple Control Options: App control, manual operation, and automation schedules.
- Easy Installation: Tool-free retrofit for DN15, DN20, and DN25 pipes.
- Smart Integration: Works with Aqara hubs, Alexa, Google Assistant, and supports Matter over Bridge.
- Battery-Powered: Runs on 4 AA batteries, lasting up to 2 years with low-power consumption.
Specifications:
- Model: VC-X01E, VC-X01D
- Wireless Protocol: Zigbee
- Dimensions: 93 × 72 × 84 mm (3.66 × 2.83 × 3.31 inches)
- Power Supply: 4 × AA batteries
- Valve Pressure: 1.6 MPa
- Torque: ≤ 60 kg-cm
- Operating Temperature: -10 °C ~ 40 °C (14 °F ~ 104 °F)
- Humidity: 0 ~ 95% RH, non-condensing
Key Automations:
- Water Leak Protection: Automatically shuts off main valve when a leak is detected.
- Garden Sprinkler Schedule: Activates watering at set times.
- Absence Mode: Turns off water supply when the home is unoccupied for extended periods.
- Radiator Control: Acts as a thermostat by closing radiator valves when no presence is detected.
Note:
- Requires an Aqara Zigbee Hub (except G2H Pro).
- Not waterproof; install indoors if controlling outdoor pipelines.
- For Matter support, a compatible Matter controller is needed.
FAQ's:
Q: Can the Aqara Valve Controller T1 be used for irrigation?
A: Yes, it can control both indoor and outdoor irrigation systems, but it is not waterproof, so it should be installed on indoor valves.
Q: What happens after a power outage?
A: The Valve Controller T1 will resume the last action it was performing before the power outage.
Q: Can it integrate with sensors from other brands?
A: Yes, it supports Matter and integrates with ecosystems like Apple Home, Google Home, SmartThings, and more via a compatible Aqara hub.
Q: What is the battery life?
A: The controller uses 4 AA batteries, lasting up to 2 years with daily use.
